| | BASIC Stamp 1 Module
from Parallax
This Basic Stamp 1 in a compact SIP form factor has enough horsepower for many applications where price is a major concern. The BS1 can now take advantage of new PBASIC features and can be programmed using MS Windows by using
BASIC Stamp 1 Serial Adapter. Manufacturer: Parallax. Manufacturer's Part Number: BS1-IC.
More Product Details ...
|
| | |
| Stock Number | Buy | Product Title | Price | Status | |
H01571-01C |
 | BASIC Stamp 1 Module |
| Qty | Price | | 1 to 4 | $29.00 | | 5 to 9 | $27.55 | | 10 to 24 | $26.10 | | 25 to 99 | $24.65 | | 100 or more | $23.20 |
| In Stock |
|
|
|
|
| | BASIC Stamp 1 Project Board
from Parallax
The Basic Stamp 1 Project Board provides is an economical "brain" for robotics, science fair and other programmable projects.
The BS1 Project Board consists of a surface-mounted BASIC Stamp 1 on a 3 1/4" x 2 1/2" (8.3 x 6.4 cm) printed circuit board. The board includes a 9V battery clip, a mechanically interlocked 2.1 mm power jack, DB-9 connector for programming, and LM 2936 regulator providing 40 mA for your projects. All I/O pins are protected by 220 ohm inline resistors to prevent damage from accidental short-circuits.
Some of the features:
- Mechanically interlocked power supply to prevent dual connection of wall-pack and 9-volt battery
- DB9 connector for BS1-IC programming and serial communication during run-time
- P0 P7 I/O pins, Vin, Vdd and Vss connections brought adjacent to prototyping area
- Includes 1 3/8" x 2" (5.1 x 3.5 cm) solderless breadboard
- Includes set of ten (10) color-coded 22 gauge wires
Additionally, the PCB layout of prototype area designed to accommodate advanced option kits:
- Parallax AppMod connector
- Parallel LCD connector
- Serial LCD connector
- Servo headers (Continuous Rotation or Standard)
The BS1 Project Board requires either a 9v battery or
AC Power Adapter 9 VDC. A
Serial Cable or
FTDI US232B USB to Serial Adapter is required for programming. Manufacturer: Parallax. Manufacturer's Part Number: 27112.
More Product Details ...
|
| | |
| Stock Number | Buy | Product Title | Price | Status | |
H01610-01J |
| BASIC Stamp 1 Project Board |
| Qty | Price | | 1 to 4 | $29.00 | | 5 to 9 | $27.55 | | 10 to 24 | $26.10 | | 25 to 99 | $24.65 | | 100 or more | $23.20 |
| In Stock |
|
|
|
|
| | BASIC Stamp 1 Rev. Dx Module
from Parallax
The latest incarnation of the original basic stamp has enough horsepower for many applications where price is a major concern. The BS1 can now take advantage of new PBASIC features and can be programmed using MS Windows by using
BASIC Stamp 1 Serial Adapter. Manufacturer: Parallax. Manufacturer's Part Number: 27100.
More Product Details ...
|
| | |
| Stock Number | Buy | Product Title | Price | Status | |
H01570-01E |
| BASIC Stamp 1 Rev. Dx Module |
| Qty | Price | | 1 to 4 | $34.00 | | 5 to 9 | $32.30 | | 10 to 24 | $30.60 | | 25 to 99 | $28.90 | | 100 or more | $27.20 |
| In Stock |
|
|
|
|
| | BASIC Stamp 1 Serial Adapter
from Parallax
Adapts the Basic Stamp 1 to allow programming using a standard serial connection. This allows the BS1 to be programmed using MS Windows computers and allows use of the latest version of PBasic. Manufacturer: Parallax. Manufacturer's Part Number: 27111.
More Product Details ...
|
| | |
| Stock Number | Buy | Product Title | Price | Status | |
H01569-01W |
| BASIC Stamp 1 Serial Adapter |
| Qty | Price | | 1 to 4 | $6.95 | | 5 to 9 | $6.60 | | 10 to 24 | $6.25 | | 25 to 99 | $5.91 | | 100 or more | $5.56 |
| In Stock |
|
|
|
|
 | BASIC Stamp 2 Module
from Parallax
The BS2-IC is the most popular BASIC Stamp module. Widely used in educational, hobby, and industrial applications. This module normally has no shortage of program space or I/O pins. Serial PC interface provides enhanced debug features. The BS2-IC is recommended for first-time BASIC Stamp users because of the many resources, documentation, source code, and customer projects that are available specifically for this module. Our educational curriculum is also based on this module, making it a great place to start. Once you have become familiar with programming in PBASIC and have designed your own projects, you may want to explore our selection of Stamps with increased power, speed, or memory. Manufacturer: Parallax. Manufacturer's Part Number: BS2-IC.
More Product Details ...
|
| | |
| Stock Number | Buy | Product Title | Price | Status | |
H01152-01B |
| BASIC Stamp 2 Module |
| Qty | Price | | 1 to 4 | $49.00 | | 5 to 9 | $46.55 | | 10 to 24 | $44.10 | | 25 to 99 | $41.65 | | 100 or more | $39.20 |
| In Stock |
|
|
|
|
 | BASIC Stamp 2e Module
from Parallax
Using the Ubicom SX microcontroller, the BS2E-IC runs at the same speed as BASIC Stamp 2, but has the RAM and EEPROM size benefits of the BS2SX, without the speed and power consumption. Ideal for those who use the BS2 and would like more variable or program space. Manufacturer: Parallax. Manufacturer's Part Number: BS2E-IC.
More Product Details ...
|
| | |
| Stock Number | Buy | Product Title | Price | Status | |
H01428-01V |
| BASIC Stamp 2e Module |
| Qty | Price | | 1 to 4 | $54.00 | | 5 to 9 | $51.30 | | 10 to 24 | $48.60 | | 25 to 99 | $45.90 | | 100 or more | $43.20 |
| In Stock |
|
|
|
|
 | BASIC Stamp 2P24 Module
from Parallax
The BASIC Stamp 2p series, available in 24 pin and 40 pin version depending on your I/O requirements, has several advantages over previous BASIC Stamps. It is 3 times faster than a BS2-IC and 20% faster than the BS2SX-IC. Commands for interfacing with parallel LCDs, I2C devices and Dallas Semiconductor 1-Wire parts have been added along with a polled interrupt capability. The BS2P24 is pin-compatible with previous BS2 modules. Manufacturer: Parallax. Manufacturer's Part Number: BS2P24-IC.
More Product Details ...
|
| | |
| Stock Number | Buy | Product Title | Price | Status | |
H01021-01J |
| BASIC Stamp 2P24 Module |
| Qty | Price | | 1 to 4 | $79.00 | | 5 to 9 | $75.05 | | 10 to 24 | $71.10 | | 25 to 99 | $67.15 | | 100 or more | $63.20 |
| In Stock |
|
|
|
|
 | BASIC Stamp 2P40 Module
from Parallax
Manufacturer: Parallax. Manufacturer's Part Number: BS2P40-IC.
More Product Details ...
|
| | |
| Stock Number | Buy | Product Title | Price | Status | |
H01721-01D |
| BASIC Stamp 2P40 Module |
| Qty | Price | | 1 to 4 | $89.00 | | 5 to 9 | $84.55 | | 10 to 24 | $80.10 | | 25 to 99 | $75.65 | | 100 or more | $71.20 |
| In Stock |
|
|
|
|

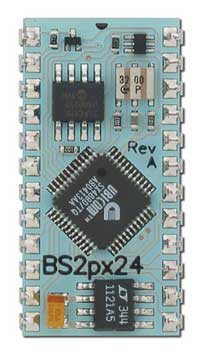

 | BASIC Stamp 2PX24 Module
from Parallax
The BASIC Stamp 2px is the latest addition to the BASIC Stamp line of microcontrollers. It is 1.6 times faster than the BASIC Stamp 2p (executing approximately 19,000 PBASIC instructions/sec) and includes a built-in voltage comparator (I/O pins P0, P1 and P2) as well as built-in, user-configurable Pull-up Resistor, Schmitt Trigger and Logic Threshold circuitry on every I/O pin. In order to use the BASIC Stamp 2px, youll need to download and install BASIC Stamp Editor v2.2 available for free download.
Technical Specifications
- Processor Speed: 32 MHz Turbo
- Program Execution Speed: ~19,000 instructions/sec
- RAM Size
- 38 Bytes (12 I/O, 26 Variable)
- Scratch Pad RAM: 128 Bytes
- EEPROM (Program) Size: 8 x 2K Bytes ~4,000 Instructions
- I/O Pins: 16+2 Dedicated Serial
- Voltage Requirements: 5 - 12 vdc
- Current Draw at 5V: 55 mA Run / 450 A Sleep
- PBASIC Commands: 61
- Size: 1.2"x0.6"x0.4"
Manufacturer: Parallax. Manufacturer's Part Number: BS2PX24X-IC.
More Product Details ...
|
| | |
| Stock Number | Buy | Product Title | Price | Status | |
H02222-01B |
| BASIC Stamp 2PX24 Module |
| Qty | Price | | 1 to 4 | $79.00 | | 5 to 9 | $75.05 | | 10 to 24 | $71.10 | | 25 to 99 | $67.15 | | 100 or more | $63.20 |
| In Stock |
|
|
|
|
 | BASIC Stamp 2SX Module
from Parallax
Using Scenix Semiconductor?s SX microcontroller, the BS2SX-IC improved speed, larger program memory, and fastest serial I/O than all BASIC Stamps except for the BS2p. Great solution for those needing more horsepower than a BS2-IC (2.5 times faster). For even higher-performance, you may upgrade to the BS2p. Manufacturer: Parallax. Manufacturer's Part Number: BS2SX-IC.
More Product Details ...
|
| | |
| Stock Number | Buy | Product Title | Price | Status | |
H01022-01G |
| BASIC Stamp 2SX Module |
| Qty | Price | | 1 to 4 | $59.00 | | 5 to 9 | $56.05 | | 10 to 24 | $53.10 | | 25 to 99 | $50.15 | | 100 or more | $47.20 |
| In Stock |
|
|
|
|
| | Javelin Stamp Module
from Parallax
The Javelin Stamp is a 24-pin DIP module programmed in a subset of the Sun Microsystems Java language. Java is a trademark of Sun Microsystems, Inc. The Java programming language is not the only thing that makes the Javelin Stamp uniquely different from BASIC Stamps: 32 k bytes of RAM/program space (leftover space can be used for variables, arrays, and serial buffers; 32 k bytes of non-volatile EEPROM; buffered serial communication in the background; up to seven UART objects that can communicated independently of each other and the main program; pulse width modulation in the background; 8000 instructions/second execution speed (not including background processes which run independently of foreground tasks). The Javelin Stamp is compatible with any BASIC Stamp programming board with a 24 pin DIP socket. Manufacturer: Parallax. Manufacturer's Part Number: JS1-IC.
More Product Details ...
|
| | |
|
|
|
|
 | Stamp Stack II Kit
The stamp stack is a small module that contains a genuine Parallax Basic Stamp interpreter chip and all other required stamp module components plus a DB-9 connector for programming. It is a great product for development or classroom use since its through-hole components and socketed interpreter chip make it easily repairable. This is a soldering kit with all required components. Manufacturer: HVW.
More Product Details ...
|
| | |
|
 |
