glyph  Electronic ComponentsSensorsOther Sensors      |       Click here for printer friendly page ...

RFID Reader - Serial

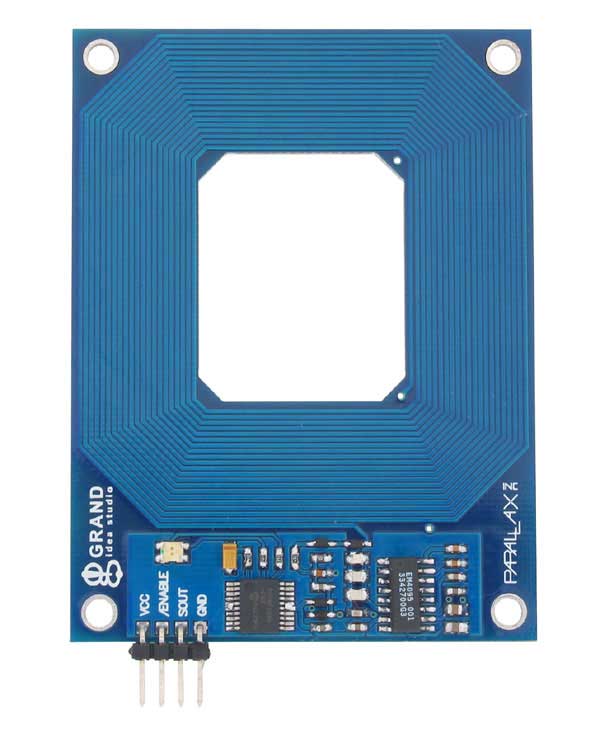

Picture of product

Click here for high res picture ...


Designed in cooperation with Grand Idea Studio, the Parallax Radio Frequency Identification (RFID) Reader Module is the first low-cost solution to read passive RFID transponder tags from up to 4 inches away. The RFID Reader Module can be used in a wide variety of hobbyist and commercial applications, including access control, automatic identification, robotics, navigation, inventory tracking, payment systems, and car immobilization.

This RFID Reader Module (Serial version only) comes with two RFID Card (54mm x 85mm rectangle),

Features:

  • Low-cost method for reading passive RFID EM4100 family transponder tags
  • 2400 baud serial interface
  • Enable input allows module to be enabled/disabled by software
  • Bi-color LED for visual indication of status


Specifications:

  • Reads 125 kHz Tags, EM41000 Family
  • Power requirements: 4.5 to 5.5 VDC
  • Communication: Serial at 2400 baud (8N1)
  • Dimensions: 2.45 x 6.25 x 0.22 in (62.2 x 82.5 x 5.57 mm)
  • Operating temp range: -40 to +185 F (-40 to +85 C)
Note: The typical maximum reading range is 2" to 2.5" depending on the tag type, mounting arrangement and environmental conditions. Allow for a maximum distance variance of at least 10% in operation due to variations in tag manufacturing and environmental conditions.

Data Sheet

Quick Facts
Catalog Number:21774
Brand:Parallax
Brand's Part Number:28140
Buy Now: Add To Cart




Stock NumberBuyProduct TitlePriceStatus
H02177-01X Add To CartRFID Reader - Serial$39.99 In Stock
H04512-01D Add To CartRFID Reader USB
More Information
$39.99 In Stock


Accessories

 ItemTitle
Image of item 2178 2178 RFID Card (54mm x 85mm rectangle)
Image of item 2179 2179 RFID Card (50mm circle)
Image of item 4162 4162 RFID Card (25mm circle)
