Function Generator (Kit)

Function Generator (Kit)

  • 4495

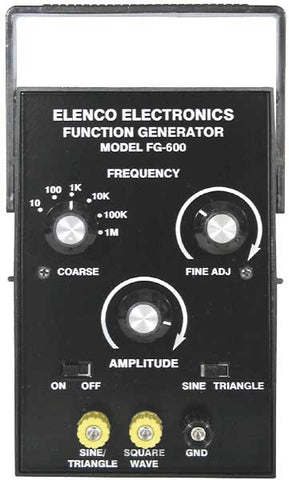

This versatile function generator kit utilizes surface mount components such as IC's, resistors and capacitors. The completed generator producees Sine, Square and Sawtooth waveforms, continuously variable to 1MHz. The kit includes all parts, printed circuit board, case and extensive training manual.

Specifications:
Waveforms: Sine, Square, Triangle
Frequency: 0.1-1MHz
Impedance: 60010%
Amplitude: Sine/Triangle: 0-3V at 9VDC input.
Square: 0.5-9V (no load).
Frequency Variable Range: 100:1 or more
Frequency Multiplier: x1, x10, x100
Sine Wave Distortion: Less than 1%
Flatness: 0.5 dB 1Hz-100kHz
Temperature Stability: 20ppm/C Typical
Square Wave Symmetry: Less than 5% (at 1kHz)
Rise & Fall Time: Less than 300ns (at 1kHz)
Triangle Wave Linearity: Less than 1% (up to 100kHz)
Power Requirements: 9 to 18VDC at input.
Brand: Elenco Electronics
Brand Part Number: FG-600K
Our Part Number: h2104
