ATX Power Supply Connector - Right Angle

ATX Power Supply Connector - Right Angle

  • 195

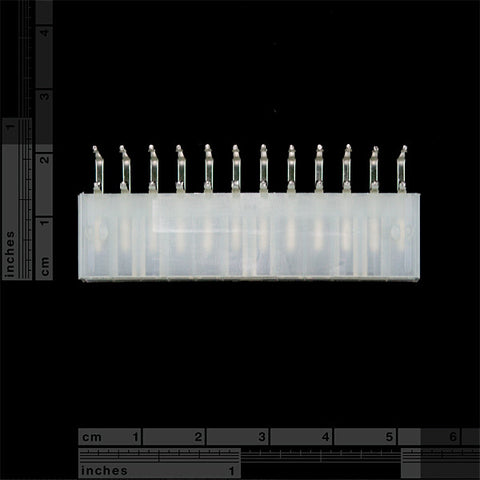

This is a right-angle, 24-pin Molex Mini-Fit Jr.™ connector, commonly used as the power supply connector on ATX motherboards. Two rows of twelve pins are broken out two rows of through-hole male headers. See the datasheet below for pin spacing dimensions.

Pair this connector with a standard computer power supply and you can source a number of different voltages (+3.3V, +5V, +12V, -12V, -5V) to your project.[

Breakout board](http://www.sparkfun.com/commerce/product_info.php?products_id=9558) now available!

Documents:

Brand: Sparkfun
Brand Part Number: PRT-09498
Our Part Number: h5618
