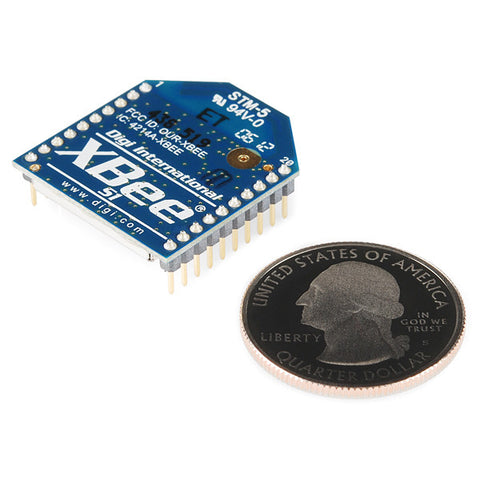

XBee 1mW Trace Antenna - Series 1 (802.15.4)

XBee 1mW Trace Antenna - Series 1 (802.15.4)

  • 2666


This is the very popular 2.4GHz XBee module from Digi. These modules take the 802.15.4 stack (the basis for Zigbee) and wrap it into a simple to use serial command set. These modules allow very reliable and simple communication between microcontrollers, computers, systems, really anything with a serial port! Point to point and multi-point networks are supported.

Not sure which XBee module or accessory is right for you? Check out our XBee Buying Guide!

Note: If you are using these outside of the United States, please check with your local laws regarding radio communication.

Features:

  • 3.3V @ 50mA
  • 250kbps Max data rate
  • 1mW output (+0dBm)
  • 300ft (100m) range
  • Fully FCC certified
  • 6 10-bit ADC input pins
  • 8 digital IO pins
  • 128-bit encryption
  • Local or over-air configuration
  • AT or API command set
  • Trace Antenna

Documents:

Replaces:XBee 1mW Chip Antenna

Brand: Sparkfun
Brand Part Number: WRL-11215
Our Part Number: h5738
