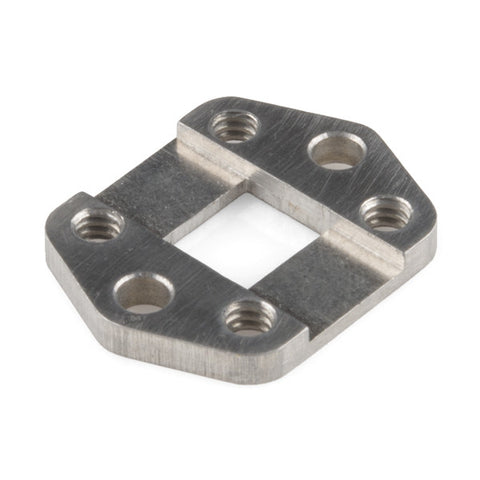

This timing belt mount let’s you clamp a portion of an XL timing belt to other Actobotics parts. It uses 4 6-32 tapped holes to connect to any 0.77" hole pattern. This can connect to channels, hub spacers, or anything else you want to move with a timing belt.

Actobotics is a robotics building system based around extruded aluminum channels, gears, precision shafts, and ball bearings. Thanks to the two standardized hole patterns, nearly all Actobotics components can be intuitively connected together. The wide range of components makes building complex electromechanical prototypes or finished projects a reality.

Documents:

• SketchUp Part
• Product Page (585502)
