LinkSprite JPEG Color Camera TTL Interface - 2MP

LinkSprite JPEG Color Camera TTL Interface - 2MP

  • 6000

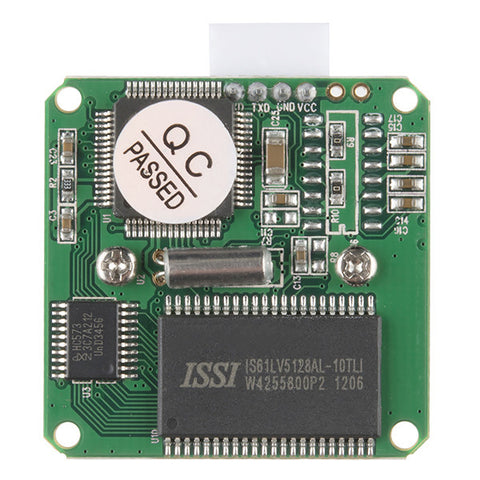

Every super spy has a small compact camera at their disposal just to get the advantage on the bad guy and though you may not be a “00” this high res TTL camera still has plenty of uses! LinkSprite’s latest JPEG Color camera module can capture high resolution pictures and transport them over TTL serial, making it perfect for embedded applications. This a very simple camera module with great user applications and can be incorporated into almost any project with ease.

Each one of these camera modules is capable for taking single 2MP JPEG images. All that is required to power these little guys is a 5VDC supply at 80-100mA (max 120mA).

Dimensions:

  • Module: 36.6 x 32 x 27.6 mm
  • Cable: ~210mm L

Features:

  • 1600x1200 / 1280x960 / 1024x768 / 800x600 / VGA / QVQAF / 160x120 resolution
  • Support capture JPEG from serial port
  • Default baud rate of serial port is 115200
  • DC +5V (+/-5%) power supply
  • Current consumption: 80-100mA (max 120mA)

Documents:

Brand: Sparkfun
Brand Part Number: SEN-12804
Our Part Number: h5901
