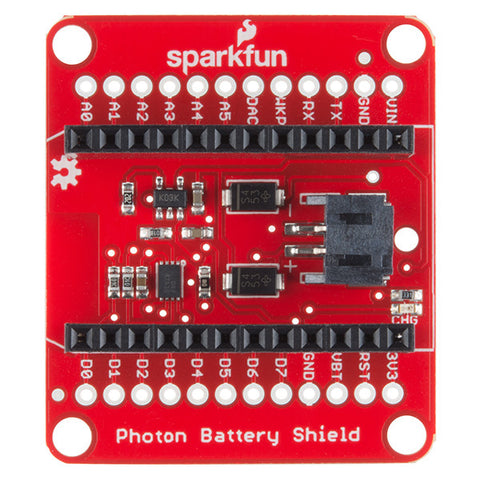

SparkFun Photon Battery Shield

SparkFun Photon Battery Shield

  • 1295


The SparkFun Photon Battery Shield provides you with an easy way to power your Photon module with a Lithium polymer battery. Not only can the Battery Shield power you Photon but you will also be able to charge a LiPo bettery through it as well. The board comes with a JST connector for your single cell LiPo battery and utilizes the Photons on-board micro-USB connector for the charge input.

This battery shield uses a MCP73831 for LiPo charging and a MAX1704X for fuel gauging. This is a very simple shield for your Photon to provide it basic and on-the-go power wherever and whenever you might need it! The SparkFun Photon Battery Shield comes with the headers already soldered on, so you can plug and play!

The Particle Photon is a tiny WiFi development kit for creating connected projects and products. Sporting a 120Mhz ARM Cortex M3 and built-in WiFi, the Photon is not only powerful, but easy to use. The small form factor is ideal for IoT projects with cloud-connectivity.

Note: Not only can this shield operate with the Photon, it can also be used with the Particle Core! We understand that there are a ton of you out there who still haven’t been able to get your hands on a Photon yet and would like to start playing with this shield now. If that person is you we hope we have obliged!

Features:

  • Headers and Connectors Pre-Soldered
  • Compatible with the Photon and the Core

Documents:

Brand: Sparkfun
Brand Part Number: DEV-13626
Our Part Number: h6022
