10JA 2.4G Air R3008SB T-FHSS Mode 2

10JA 2.4G Air R3008SB T-FHSS Mode 2

  • 34998
  • Save $ 80

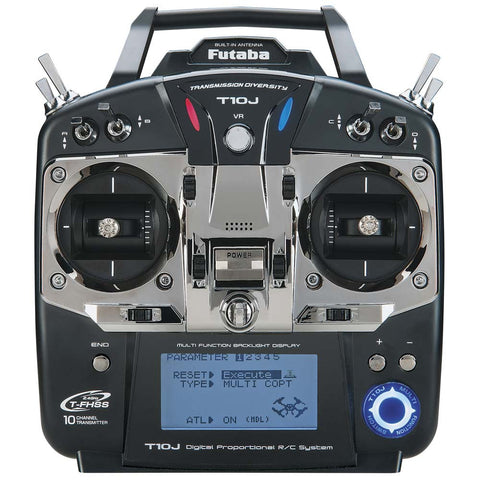

This is the Futaba 10JA 2.4GHz 10-Channel S/FHSS Radio System with the R3008SB Receiver. The 10J 2.4GHz transmitter is "full range".

This is the airplane version which will default to airplane settings, with mode 2 stick operation when powered up and has a ratcheted throttle stick.

Features:
  • Ten channels include one variable knob, five 2-position switches, two 3-position switches, one momentary switch, two digital levers
  • Assignable switch/lever/functions (ch. 5-10)
  • T-FHSS system with telemetry
  • Airplane, helicopter and glider/sailplane functions in the software
  • User-updatable software (requires optional CIU-2 interface, FUTM0951)
  • SBus programmable port
  • Jog dial and three buttons for fast easy programming
  • Transmitter also compatible with all Futaba SFHSS air receivers
  • Synthesized voice with telemetry data
  • Vibration function for use with low battery or warning set ups
  • Voice output
  • 128x64dot LCD screen with backlight
  • 30 model memory
  • Throttle cut
  • Servo cycle with bar graph displays
  • R3008SB T-FHSS telemetry receiver with external voltage port, S.Bus and S.Bus2 compatibility, 8 pwm ports
  • Trainer system
  • Large 128x64 dot backlit display
  • One year limited warranty through Hobby Services beginning at date of purchase Airplane Menu:
  • 6 programmable mixes
  • 9 factory-defined mixes
  • Flaperons with differential rate
  • Flap trim
  • Differential ailerons
  • Gyro sensitivity
  • 5-point throttle and pitch curves
  • Throttle delay
  • Idle down Glider Menu:
  • 6 programmable mixes
  • 3 factory defined mixes
  • 5 wing types
  • Gyro sensitivity
  • Motor menu
  • 2 flight conditions Heli Menu:
  • 6 programmable mixes
  • 10 factory defined mixes
  • 8 swash plate types
  • 5 flight conditions w/delay
  • Throttle curve (4 curves, 5 points)
  • Pitch curve (5 curves, 5 points)
  • Throttle hold and delay
  • Swash AFR
  • Electronic swash ring Multi-Rotor Menu
  • 6 programmable mixes
  • Gyro sensitivity/mixing
  • Center stick alarm
Includes:
  • Futaba 10JA 2.4GHz 10-Channel S/FHSS Transmitter
  • R3008SB Receiver, FUTL7685
  • Switch Harness
  • Neck Strap
  • Instruction Manual
Requires:
  • 4 "AA" Alkaline batteries
  • Servos of your choice
Specs:
  • Transmitter
  • Type: 2-stick, 10 channel, T-FHSS Air-2.4GHz system
  • Transmitter Frequency: 2.4GHz band
  • System: T-FHSS Air, S-FHSS, switchable
  • Power Supply: 6.0V dry battery
  • R3008Sb Receiver
  • Type: T-FHSS Air-2.4GHz, dual antenna diversity, S.BUS system
  • Power Requirement: 4.8-7.4V battery or regulated output from ESC*
  • Size: 0.98 x 1.86 x 0.56" (24.9 x 4703 x 14.3mm)
  • Weight: 0.36oz (10.1g)
  • Battery F/S Voltage: Sets up with transmitter
  • *When using ESCs make sure the regulated output capacity meets usage
  • application
Comments:
  • To use the NiMH battery FUTM1482, you will need to purchase the Futaba HBC-3B(4) charger, FUTM1832. If you already have a charger and need a charge lead, contact Hobby Services and order part number HSP29615. (requires soldering on the correct charger plugs) You may also use a 2C 6.6V LiFe battery such as HCAM6521
Brand: Futaba
Brand Part Number: FUTK9200
Our Part Number: h6670
