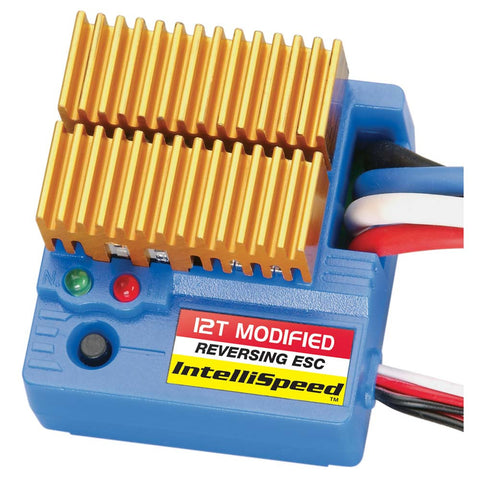

This is the Team DuraTrax I-Speed Modified Forward and Reverse Electronic Speed Control with a Futaba J connector. FOR MODIFIED MOTORS DOWN TO 12 TURNS ONLY! ABS Braking for better control in and out of corners, and adjustable reverse-delay, reverse-lockout, and traction control.

*** 120 Day Limited Warranty ***

• Forward and Reverse and ABS Braking
• Excellent for intermediate to advanced racers
• Easy Pushbutton Setup
• Thermal Protected
• More efficient than mechanical Speed Controls
• Reverse Lockout (see COMMENTS)
• LED ( Forward and Red-Full Speed, Red and Green-Reverse)
• Pre-Installed Futaba J Connector
• Pre-Installed Bullet Type Connectors For Motor
• Standard (Tamiya Type) Connector For Battery Pack
• ON/OFF Switch
• BEC Equipped

• One I-Speed Forward/Reverse Electronic Speed Control with Futaba J Connector and Bullet Motor Connectors.
• Three .1 Type Capacitors
• One Instruction Sheet

• On-Resistance: 0.0035
• Traction Control: 0.0, 0.1, or 0.2
• Reverse Delay: 0.3 or 0.8
• Maximum Continuous Current: 232A
• Maximum Peak Current: 800A
• Number Of Cells: 6-7
• Size With Heatsinks: 1.48"L x 1.34"W x .57"H
• Weight With Heatsink: 2.44 ounces
• Connector: Motor: bullet
• Battery: standard (Tamiya)
• Motor: 12 Turn Modified
• Wires: 14 gauge

• Installing Three .1 Type Capacitors Onto Motor with Solder
• Installing onto an Electric Vehicle
• 6 or 7 Cell Battery
• Motor (12 Turn or Above)

• The manual states that during the reverse delay/lockout procedure, the ESC will flash just the Red LED light a series of times. This is a typo. The ESC flashes both Red and Green LEDs during this setup procedure.
