MC230CR ESC w/Reverse 20+T

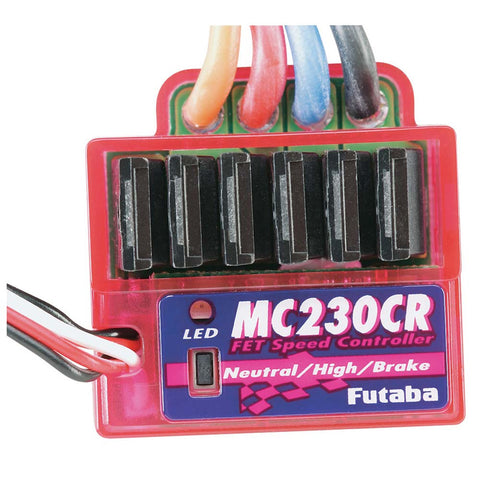

This is a MC230CR Electronic Speed Control w/ Reverse for 20+ Turn Motors.
Features:- Operates motors that are 20 turns up to 27 turns (Stock Motors)
- All connectors are pre-installed
- One-touch set-up with set-up LED.
- Fully proportional forward and reverse
- Includes Reverse Disable so it is legal for ROAR racing
- Heat/overload/short circuit protection
- Low-battery feature automatically cuts motor power when power levels become too low.
- Receiver reminder switch beeps to remind you to turn OFF the receiver and the vehicle will pulse (not run) forward as an additional reminder.
- Brake
- One year warranty
- One MC230CR Electronic Speed Control w/ Reverse, Futaba J receiver connector, bullet connectors, standard type battery connector and ON/OFF switch.
- One Set-Up Screwdriver (FUTM5685)
- One Instruction Sheet
- Futaba J plug compatible receiver
- Male bullet connectors for motor (GPMM3114)
- Capacity: 6 to 7 cell batteries
- Motor Limit: 20+ turns
- Current- Forward: 90A Reverse: 45A
- On Resistance: .0035 Ohms
- High Frequency: Yes, 1,500Hz
- Connectors: Futaba J, Standard for Battery, Bullet Motor
- (all pre-installed)
- Bullet Motor Wire: 16 gauge
- Bec: Yes (6V) (1 amp)
- Length: 1.07" (27.1mm)
- Width: .50" (12.7mm)
- Height: 1.31" (33.3mm)
- Weight: 1.55oz (44g)
- Generally, high-torque and brushless servos for steering control can be used with this ESC as long as the continuous current draw of the servo does not exceed 1A continuously. Do not use the Futaba S9157 high-torque servo with this ESC as this servo draws over 3A."
Brand: | Futaba |
Brand Part Number: | MC230CR |
Our Part Number: | h7309 |
