Test Equipment Section

Tool Sets
	Electronic Meter and Test Lead Tool Set This bundle consists of one Digital VOM, one Banana Plug to Alligator Clip Test Leads, one Banana Plug to Mini-Clip Test Leads, one Alligator to Alligator Clip Test Jumpers (10 Jumpers, 2/Color), one Bredblox w/830 Tie Points, one Premium Wire Stripper, one Hook-Up Wire 22ga Solid Black 25', one Hook-Up Wire 22ga Solid Red 25', one Hook-Up Wire 22ga Stranded Black 25', one Hook-Up Wire 22ga Stranded Red 25' and one Stackable Storage Box w/ Lid. Save up to $10.95 with this bundle! This bundle consists of a good quality voltmeter plus a comprehensive selection of supplies and accessories that are often needed when debugging or developing basic electronic circuits. The package includes a sturdy plastic storage tub. While it is definately possible to build electronic circuits without these items, most "serious" students and hobbyists accumulate a similar collection of tools and supplies fairly quickly -- enduring a significant level of frustration and duplicate shipping charges as they figure out what they need. Manufacturer: BIZNODE. More Product Details ...
Stock Number Buy Product Title Price Status H01929-01R Electronic Meter and Test Lead Tool Set $53.99 In Stock
	Complete Student / Hobbyists Super Tool Set This bundle consists of one Basic Hand Tool Set, one Advanced Soldering Tool Set and one Electronic Meter and Test Lead Tool Set. Its possible to build many robot and electronic projects using a small collection of tools that are often found around the house. Making do that way is often an economic necessity and can be part of the building challenge. When finances aren't an absolute limitation, accumulating one tool at a time lets you get exactly the quality and feel of tools that you prefer. We offer this tool set as a reasonable compromise. It includes a comprehensive set of tools and accessories that simplify building and eliminate the frustration, wasted car trips and extra shipping charges that often accompany accumulating tools one item at a time. These are economical, good quality tools that will provide years of service if properly cared for. We use these tools at our own development and repair workbenches and in the classes we teach. The package includes two sturdy plastic storage tubs. More Product Details ...
Stock Number Buy Product Title Price Status H01930-01A Complete Student / Hobbyists Super Tool Set $125.99 In Stock
Meters

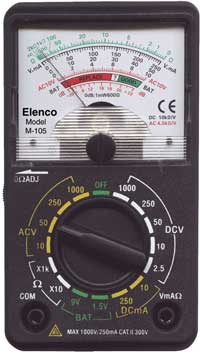

	Analog VOM This compact analog VOM is a great tool for beginners and light general use. The meter has 15 ranges including DC Voltage (1.5, 10, 50, 250, 1000), AC Voltage (10, 50, 250, 1000), DC Current (10ma, 250ma), Ohms (x10, x1K) and battery test (1.5v and 9v). Accuracy is +/- 5% of full scale reading in each range. Includes test leads, manual and AA battery. Dimensions: 4.5" x 2.5" x 1.3". Weight: 4.2 oz. Manufacturer: ELENCO. Manufacturer's Part Number: M-105. More Product Details ...
Stock Number Buy Product Title Price Status H01640-01F Analog VOM $12.99 In Stock

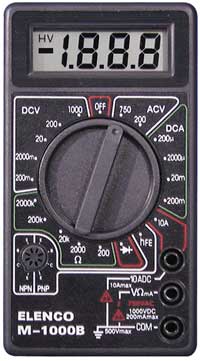

	Digital VOM This digital VOM provides a good set of measurements for most builders and technicains for an entry level cost. The meter has 19 ranges including DC Voltage (200mv, 2V, 20V, 200V, 1000V), AC Voltage (200V, 750V), DC Current (200ua, 2000ua, 20ma, 200ma, 10A), resistance (200, 2K, 20K, 200K, 2M), diode test and bipolar transistor test. Accuracy is +/- 0.5% of full scale reading for AC or DC voltage, 1.2% + 2 digits for DC current and resistance. Includes test leads, manual and 9v battery. Dimensions: 5" x 2.9" x 1". Weight: 4.5 oz. Manufacturer: ELENCO. Manufacturer's Part Number: M-1000C. More Product Details ...
Stock Number Buy Product Title Price Status H01655-01D Digital VOM $19.99 In Stock

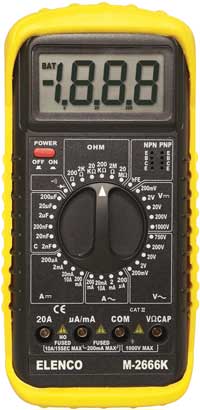

	Digital VOM (Kit) In many trades the first thing you learn is how to build and maintain your own tools. This high quality, full featured multimeter kit lets you continue that tradition in the field of electronics. A multimeter, also known as a volt-ohm meter (VOM) is an essential tool for testing electronic circuits. This deluxe meter has the following features: Extra large 1", 3 1/2 digit display Transistor tester Overload protection Capacitance to 200F Diode test Audio continuity AC/DC current to 20A Low battery indication Rubber holster Tilt stand Safety input sockets & test leads Specifications: AC and DC volts ranges of 200mV, 2V, 20V, 200V, and 1000V with an accuracy ir 1/2% DC and 1% A and a resolution or 100V. AC and DC current ranges of 200A, 2mA, 20mA, 200mA, 20A with an accuracy of 1-1/2% DC, 2% AC and 20A 2.5% with a resolution of 0.1A. Resistance ranges of 200, 2k, 20k, 200k, 2M and 20M with an accuracy of 1%, 2% 20M and resolution of 0.1. Capacitance ranges of 2nF, 20nF, 200nF, 2F and 200F with an accuracy of 2-1/2%, 5% 200F and a resolution of 1pF. The meter measures 7-1/2" (H) x 3-1/2" (W) x 1 13/32"(D). The package includes test leads, a manual and a 9V battery. Manufacturer: ELENCO. Manufacturer's Part Number: M-2666K. More Product Details ...
Stock Number Buy Product Title Price Status H02081-01B Digital VOM (Kit) $49.95 In Stock

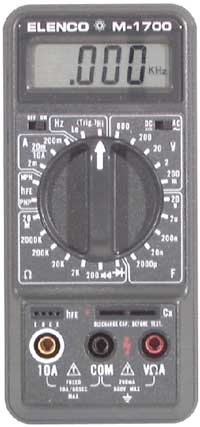

	Digital VOM This digital VOM provides a comprehensive set of measurements for a very reasonable cost. The meter has 30 ranges including DC Voltage (200mv, 2V, 20V, 200V, 600V), AC Voltage (200mv, 2V, 20V, 200V, 600V), DC Current (2ma, 20ma, 200ma, 10A), AC Current (2ma, 20ma, 200ma, 10A), resistance (200, 2K, 20K, 2M, 20M), capacitance (2nf, 20nf, 200nf, 2uf, 20uf) and frequency (10Hz - 20MHz autoranging). Accuracy is +/- 0.9% of full scale reading for DC voltage, 1.9% for AC voltage, 2.5% for AC and DC current, 1.5 ohm for resistance, 5% for capacitance and 0.5% for frequency. Includes test leads, manual and 9v battery. Dimensions: 6" x 2.5" x 1.25". Weight: 4.4 oz. Manufacturer: ELENCO. Manufacturer's Part Number: M-1700. More Product Details ...
Stock Number Buy Product Title Price Status H01641-01D Digital VOM $54.99 In Stock
Power Supplies
	DC Power Supply: 0 - 15 VDC (KIT) This is a good quality AC/DC power supply for your workbench. It provides three fully regulated DC supplies : 1.5v to 15v at 1A, -1.5 to -15v at 1A and 5v at 3A. It also provides unregulated 6.3 VAC @ 1A and 12.6 VAC (center tapped) @ 1A. I features short circuit protection on all supplies. This power supply is provided in kit form. Manufacturer: ELENCO. Manufacturer's Part Number: XP-720K. More Product Details ...
Stock Number Buy Product Title Price Status H01770-01A DC Power Supply: 0 - 15 VDC (KIT) $74.99 In Stock
	Deluxe Battery Eliminator This power supply is an ideal bench top battery eliminator. It substitutes for a wide variety of batteries including AA, AAA, C, D and 9v types. The voltage is conveniently selected by a rotary switch. Advanced, sold-state electronics provides both LINE and LOAD regulation of the output voltage. The voltage selector switch is precision-designed so that the output voltage does not increase during adjustment between voltage settings. Output selections are 1.5, 2.2, 3, 4.5, 5, 6, 7.2, 9, 10, 15, and 21.25 VDC at 1A. Manufacturer: ELENCO. Manufacturer's Part Number: XP-100. More Product Details ...
Stock Number Buy Product Title Price Status H01772-01W Deluxe Battery Eliminator $74.99 In Stock
	DC Power Supply: Dual 0-20 VDC @ 1A and 5 VDC @ 5A The XP-760 is a variable DC power supplies that is ideal for schools, labs and technicians. The XP-760 contains three fully regulated power supplies. Two are voltage variable 0-20 VDC @ 1A and the third is a fixed 5V @ 5A. All three are isolated from each other so that they can be stacked to produce up to 45V @ 1A. All three supplies are protected against short circuits. The two 0-20V supplies incorporate variable current cutoff circuits with an LED indicating current overload. The Model-760 has two 3-digit LED meters which can display voltage or current for each of the variable power supplies. The XP-760 is covered by the manufacturer's limited two year warranty. Specifications: Input Voltage: 120VAC Output Voltage: 0-20, 0-20, 5 VDC Output Current: 1A, 1A, 5A Load Regulation: less than 1% Line Regulation: less than 1% Ripple Max RMS: .005V Current Protection: .05-1A dial selectable Short Protection: .05-1A dial selectable Output Impedance:.025Ω Meter: Digital 20V or 1A switch selectable (2) Dimensions (HxWxD):3-1/2" x 14" x 8" Weight (lbs):14 Manufacturer: ELENCO. Manufacturer's Part Number: XP-760. More Product Details ...
Stock Number Buy Product Title Price Status H02208-01A DC Power Supply: Dual 0-20 VDC @ 1A and 5 VDC @ 5A $349.99 In Stock
	DC Power Supply: Dual 0-20 VDC @ 1A and 5 VDC @ 5A The XP-660 is a variable DC power supplies that is ideal for schools, labs and technicians. The XP-660 contains three fully regulated power supplies. Two are voltage variable 0-20 VDC @ 1A and the third is a fixed 5V @ 5A. All three are isolated from each other so that they can be stacked to produce up to 45V @ 1A. All three supplies are protected against short circuits. The two 0-20V supplies incorporate variable current cutoff circuits with an LED indicating current overload. The Model-660 has two analog meters which can display voltage or current for each of the variable power supplies. The XP-660 is covered by the manufacturer's limited two year warranty. Specifications: Input Voltage: 120VAC Output Voltage: 0-20, 0-20, 5 VDC Output Current: 1A, 1A, 5A Load Regulation: less than 1% Line Regulation: less than 1% Ripple Max RMS: .005V Current Protection: .05-1A dial selectable Short Protection: .05-1A dial selectable Output Impedance:.025Ω Meter: Analog 20V or 1A switch selectable (2) Dimensions (HxWxD):3-1/2" x 14" x 8" Weight (lbs):14 Manufacturer: ELENCO. Manufacturer's Part Number: XP-660. More Product Details ...
Stock Number Buy Product Title Price Status H02207-01C DC Power Supply: Dual 0-20 VDC @ 1A and 5 VDC @ 5A $279.99 In Stock
Other Test Equipment
	Parallax USB PC Oscilloscope from Parallax The Parallax USB Oscilloscope (formerly known as the OPTAscope) connects to your PC via USB to provide real oscilloscope functions at an economical price by makinguse of your PC display and processing power. The hardware is small, portable, elegant and requires no power supply. All oscilloscope controls are managed through a point-and-click PC interface. The software provides an easy method of obtaining quality screen captures for reports and live demonstrations. You have the ability to measure acquired waveforms with easy-to-use cursors. Common scope features including trigger settings, waveform measurements (MIN, MAX, frequency, period), ability to save customized setups, BMP screen captures, etc are standard in the software. Special features include 3 cursor functions with the option to snap to the waveform. The cursors operate in zoom mode, allowing close viewing and precise measuring of signals. Technical Specifications: 2 Channels 1 Ms/s Maximum Sample Rate with One Channel 500 Ks/s Sample Rate with Two Channels 20 Vpp Maximum Input for Channel 1 and Channel 2 200 kHz Bandwidth 8-Bit Vertical Resolution 1 M Ohm Input Impedance Trigger on Rising or Falling Edge at any Voltage Variable Trigger voltage on Channels 1 and 2 Horizontal Trigger Position Settings at 10%, 50%, and 90% Auto and Normal Trigger Modes 3 probes USB 1.1 Support (no additional power supply required!) Size: 5 x 2.25 x 1.5 (in.); 12.7 x 5.7 x 3.8 (cm) Weight: 8 oz; 227 gm Additional benefits: 14-day return for refund and 90-day workmanship warranty; free Parallax technical support by e-mail and phone; free software upgrades. System Requirements: Windows 98 or higher Pentium 233 MHz processor 32 MB of RAM 15 MB of free disk space Graphics card able to display an 800 X 600 resolution at 16-bit color depth. HTML Viewer Mouse or similar pointing device Recommended configuration: Windows XP Pentium II 450 MHz processor 64 MB of RAM 20 MB free disk space Graphics card able to display a 1024 X 798 or higher resolution at 32-bit color depth. HTML Viewer Mouse or similar pointing device Windows 95 and NT are not supported, Windows XP is recommended. Actual performance is dependent on CPU speed. Manufacturer: Parallax. Manufacturer's Part Number: 28014. More Product Details ...
Stock Number Buy Product Title Price Status H01976-01T Parallax USB PC Oscilloscope $139.95 In Stock
	Understanding Signals Class + PC Oscilloscope from Parallax The Understanding Signals Text and Parts Kit explains use of an oscilloscope using example circuits that are commonly used in robotics. The kit includes Parallax USB PC Oscilloscope, a comprehensive tutorial and lab manual and over 25 components, including a servo, so all you need to follow the examples is a Board of Education - Full Kit Serial, Boe-Bot Complete Robot Kit v2 Serial or other Basic Stamp platform with a breadboarding area. Manufacturer: Parallax. Manufacturer's Part Number: 28119. 144 pages. More Product Details ...
Stock Number Buy Product Title Price Status H01500-01M Understanding Signals Class + PC Oscilloscope $159.95 In Stock
	Function Generator (Kit) This versatile function generator kit utilizes surface mount components such as IC's, resistors and capacitors. The completed generator producees Sine, Square and Sawtooth waveforms, continuously variable to 1MHz. The kit includes all parts, printed circuit board, case and extensive training manual. Specifications: Waveforms: Sine, Square, Triangle Frequency: 0.1-1MHz Impedance: 60010% Amplitude: Sine/Triangle: 0-3V at 9VDC input. Square: 0.5-9V (no load). Frequency Variable Range: 100:1 or more Frequency Multiplier: x1, x10, x100 Sine Wave Distortion: Less than 1% Flatness: 0.5 dB 1Hz-100kHz Temperature Stability: 20ppm/C Typical Square Wave Symmetry: Less than 5% (at 1kHz) Rise & Fall Time: Less than 300ns (at 1kHz) Triangle Wave Linearity: Less than 1% (up to 100kHz) Power Requirements: 9 to 18VDC at input. Manufacturer: ELENCO. Manufacturer's Part Number: FG-600K. More Product Details ...
Stock Number Buy Product Title Price Status H02104-01B Function Generator (Kit) $44.95 In Stock
Test Leads and Jumpers
	Alligator to Alligator Clip Test Jumpers Alligator clip test jumpers provide solid electrical connections that don't easily slip when pulled or hit as often happens during debugging. Available in 5 different colors: black, red, yellow, white and green. Each jumper is 14" long and made of 22ga high strand count wire. Manufacturer: ELENCO. Manufacturer's Part Number: TL-6. More Product Details ...
Stock Number Buy Product Title Price Status H01642-01B Alligator to Alligator Clip Test Jumpers (10 Jumpers, 2/Color) $5.99 Out of Stock H01642-02Z Alligator to Alligator Clip Test Jumpers (2 Jumpers: Red&Black) $2.19 Out of Stock H01642-03X Alligator to Alligator Clip Test Jumpers (2 Jumpers: Asst) $1.79 In Stock
	Banana Plug to Alligator Clip Test Leads Stackable banana plug to alligator clip test leads firmly connect your voltmeter, power supply or other test equipment with a bite that doesn't easily slip when pulled or hit as often happens during debugging. Each package contains one red and one black test lead. Each test lead is 36" long. Manufacturer: ELENCO. Manufacturer's Part Number: TL-5. More Product Details ...
Stock Number Buy Product Title Price Status H01639-01X Banana Plug to Alligator Clip Test Leads $3.99 In Stock
	Banana Plug to Mini-Clip Test Leads Stackable banaba plug to mini-clip grabber test leads firmly connect your voltmeter, power supply or other test equipment to small wires and components in tight spaces. Each package contains one red and one black test lead. Each test lead is 36" long. Manufacturer: ELENCO. Manufacturer's Part Number: TL-12. More Product Details ...
Stock Number Buy Product Title Price Status H01638-01Z Banana Plug to Mini-Clip Test Leads $3.99 In Stock
	Mini-Clip Test Jumpers Test jumpers with mini-clip grabbers on each end make great temporary electrical connections when debugging circuits. They hold solidly to small wires and component leads and fit in very tight spaces. Each package contains five different colored jumpers (black , red, blue, yellow and green). Each test jumper is 15" long. Manufacturer: ELENCO. Manufacturer's Part Number: TL-21. More Product Details ...
Stock Number Buy Product Title Price Status H01680-01B Mini-Clip Test Jumpers $9.99 In Stock
