Solar Cell Large - 2.5W

Solar Cell Large - 2.5W

  • 3495

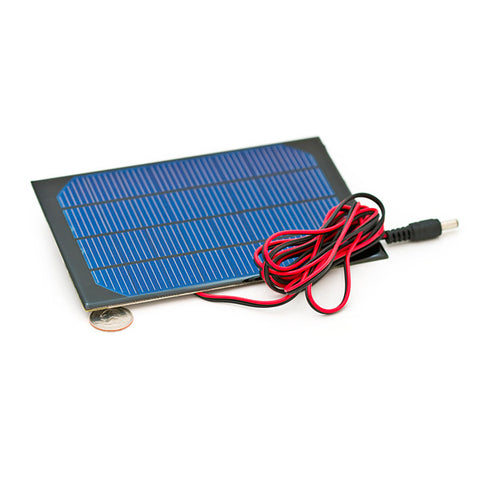

Packaged solar cell with barrel plug termination. This is a custom cell produced for SFE - not a small toy surplus item! This unit is rated for 8V open voltage and 310mA short circuit. We actually took a random unit outside and measured 9.15V open voltage and 280mA short circuit. Under ideal sun conditions (high-noon, clear sky) 310mA is very possible but will vary from cell to cell. We can even get 110mA from inside our office windows!

Termination is a 5.5mm x 2.1mm barrel plug, center positive on a 2m cable. Monocrystalline high efficiency cells at 15-15.2%. Mates directly with many of our development boards. Unit has a clear epoxy resin coating with hard-board backing. Robust sealing for out door applications!

Dimensions: 7 x 4.5"

Brand: Sparkfun
Brand Part Number: PRT-07840
Our Part Number: h5559
